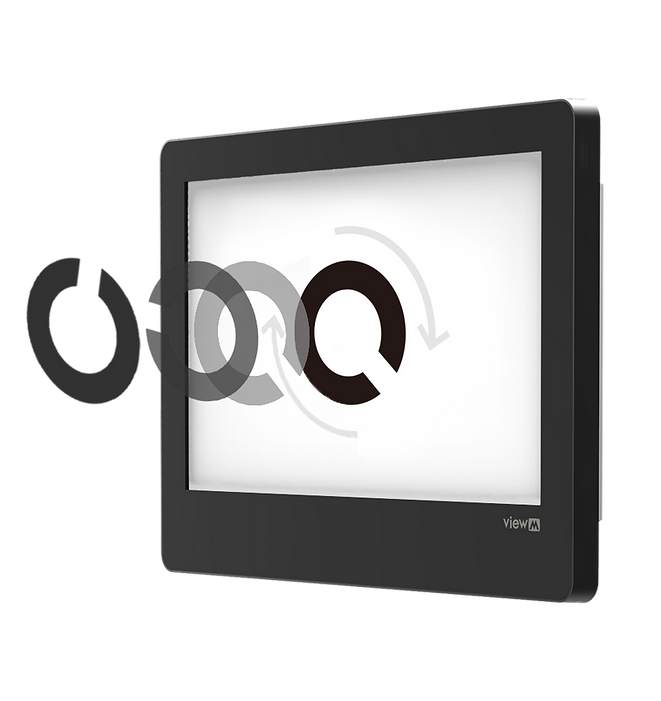

VLC-2400/P

VLC-2400/P provides various and precise opto-types

by using polarized and cutting-edge digital technology.

Random Function

VLC-2400/P provides various charts with differently

order opto-types with Number, Alphabetic letters,

Landolt, Shellen, Children opto-types in order to protect

the memorizing the order of opto-types by patients.

slide function

In order to concentrate children's patient, VLC-2400/P provides

slide animation functions. Also it shows number of ophthalmic symptoms

with prescriptions, when the chart is not used for period of time.

Adjusting viewing distance

Viewing distance can be adjusted in accordance to the

space of the test room. Viewing distance is selectable by

0.25M step within 1.5M(Min) ~ 6M(Max)

Sophisticated modern design

Sophisticated black silver bezel design can be placed in any test room.

VLC-2400

SPECIFICATION

LCD Type               24inch (SXGA) TFT LCD



Resolution              1920  X 1080  pixels



Chart window size       (H) 298.89  X (W)531.36 mm



Brightness              MAX 250 cd/m2

Chart Available          Landolt, Snellen, English, Arabic, Numeral, Color Blindness, Special Chart, lmage and etc.



Selectable Distance       1.5 ~ 6M (0.25M step)



Memory Type            IDE type Flash Disk Module  4G



Power Supply            DC 12V / 5A



Power Consumption       Less than 60W



Dimension / Weight       (W) 624 X (H) 431  X (D) 79mm / 9kg



Remote Control           (W) 69.5 X (H) 235.5 X (D) 26mm / 200g / Rechargeable Battery



Data Interface             serial (RS-232)



Standard Accessory        Wall Mount Bracket



Optional Accessory        Poll type Floor Stand, Red / Green Glasses, Pola Glasses



Comctn



       Wireless             IRDA Communication



        Wired             RS232  Communication
