VAA-2000PSE
This Section shows the ViewM's Self Vision Tester's technology and you can check
out the full details of Vison Tester enable to be used by the common users.
This can help the people to care for the health individually and
improve the daily life, be under the industry of health care everyday
VAA-2000PSE
SINGLE
BOTH
QUICK
Variable Eyesight Test
By using this valuable device, User can conduct the eyesight
test for the purpose of single, both and quick mode in total,
which are each respectively the single mode only for single
test, both mode included single and both test at the same
time.Particularly this has the quick mode to be fitted well for
the school and medical check up center in its application as
saving the testing time required.

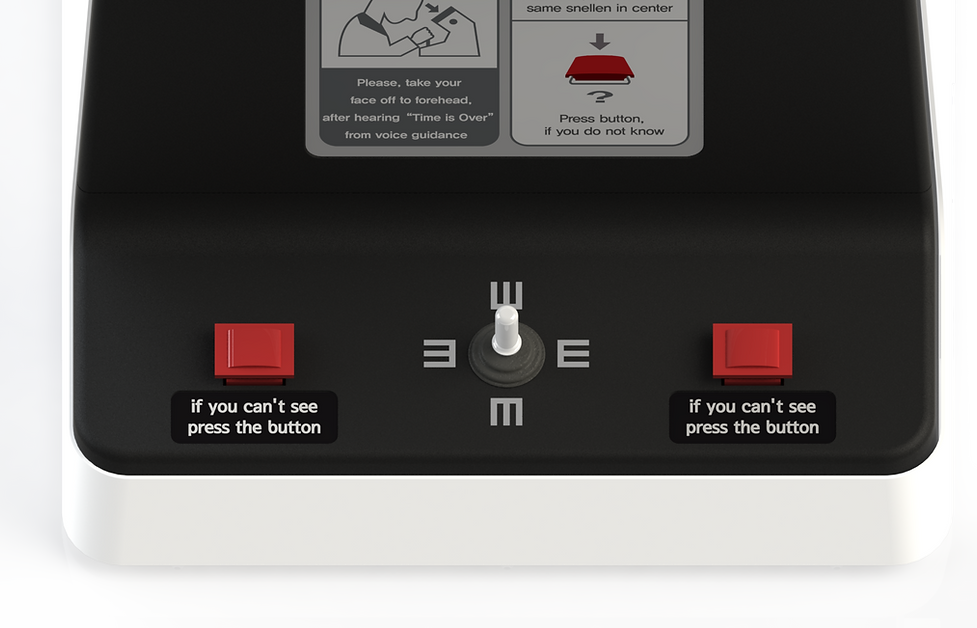

Convenient and Easy Operation
When the user places the forehead on the supporter for evaluating the eyesight,
the test will be started up automatically. And then the instruction guide by the
electronic voice will let the users proceed the test independently. Simple way to
operate the device coming up only with Joystick and button while doing the test!
Main Features
Support for three different of eyesight measures, Alarming notice enable to be aware of the
low eyesight value, Printing the result of test,Indicator of green LED for showing the playing status,
Variable measurement distance(5m), 13 steps of wide testing range(0.1~2.0)
Available both in Korean and English for the instruction guide by the electronic voice,
Being able to connect the external device for the sake of transmitting the result of eyesight value
VARIOUS OPTOTYPES
VAA-2000 offers a variety of optotype options,
including Snellen E, Number and Picture.
HOW TO USE
VAA-2000PSE
SPECIFICATION
Name of Product
Measurment Distance
LCD Chart
Power Source
Diamension
Measurment Range type A
Measurment Range type B
Measurment Range type C
Control Device
Printer
Rear of Pannel
Software
Accessary
Self Vision Tester
Long Distance(5m)
Landolt Rings, Snellen E, Number
DC + 12V 5.0A (Power Adapter)
270(W) x 356(L) x 468(H)mm
0.1/0.2/0.3/0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0
200/100/66.7/50/40/33.3/28.6/25/22.2/20/16.7/13.3/10
60/30/20/15/12/10/8.6/7.5/6.7/6/5/4/3
Joystick and Button
Thermal Printing
Volume : Buzzer Sound, Electronic Voice Message
The function of Option 1 Button : Single/Both/Quick Mode/Others
The function of Option 2 Button : Play/Time/Setting/Type
Feed Button of Paper : Printing the Paper
Connecting to the External Device : Serial Port(RS232C)
Power Switch/Power In
Windows CE
Instruction Manual, Power Adopter, Power Code, Cover for removing dust and dirty
